Single-Phase Smart Meter
Mixed-signal metering hardware redesigned for precision measurement and serial production.
Status: Serial production
Tools: Altium Designer · RS-485 · LoRa · Bluetooth
Redesigning an industrial meter
I substantially refactored the existing schematic and PCB implementation for a residential electricity meter. Firmware and enclosure design were handled by other specialists.
Protecting the measurement path

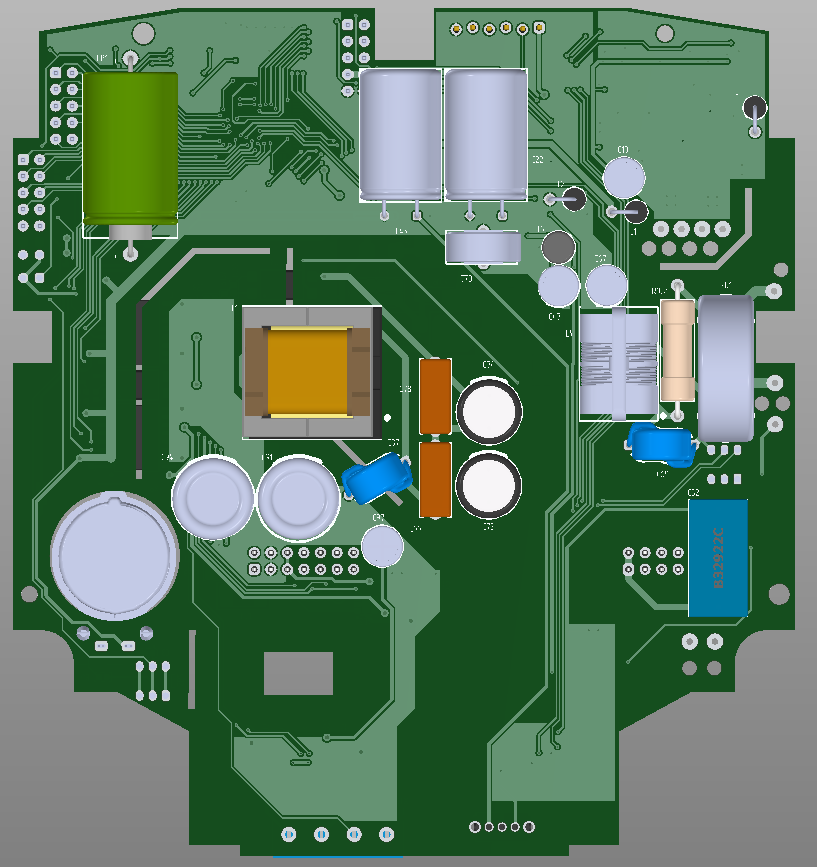

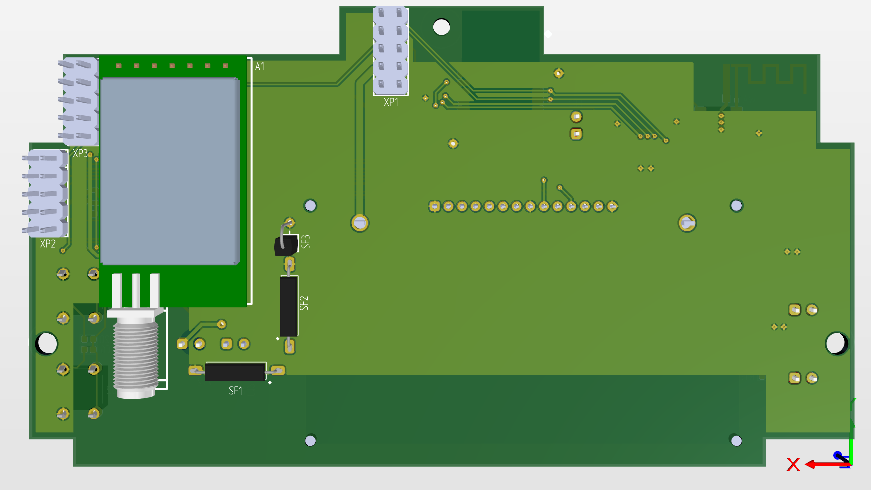

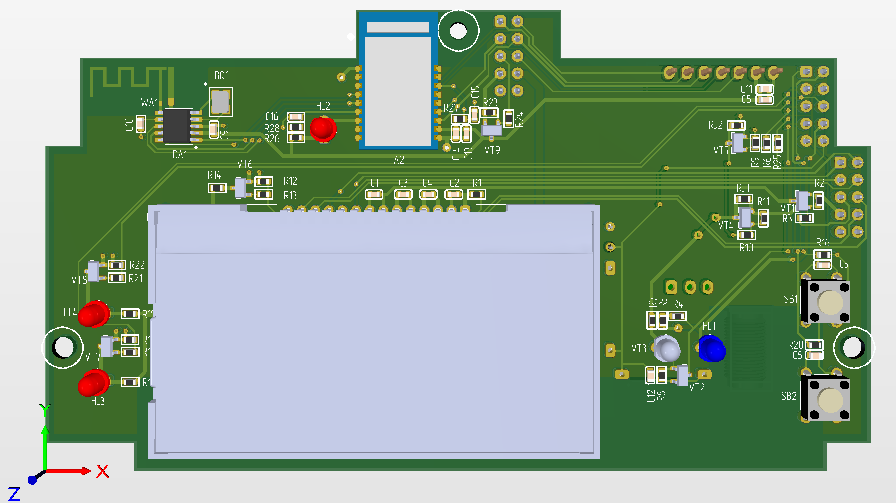

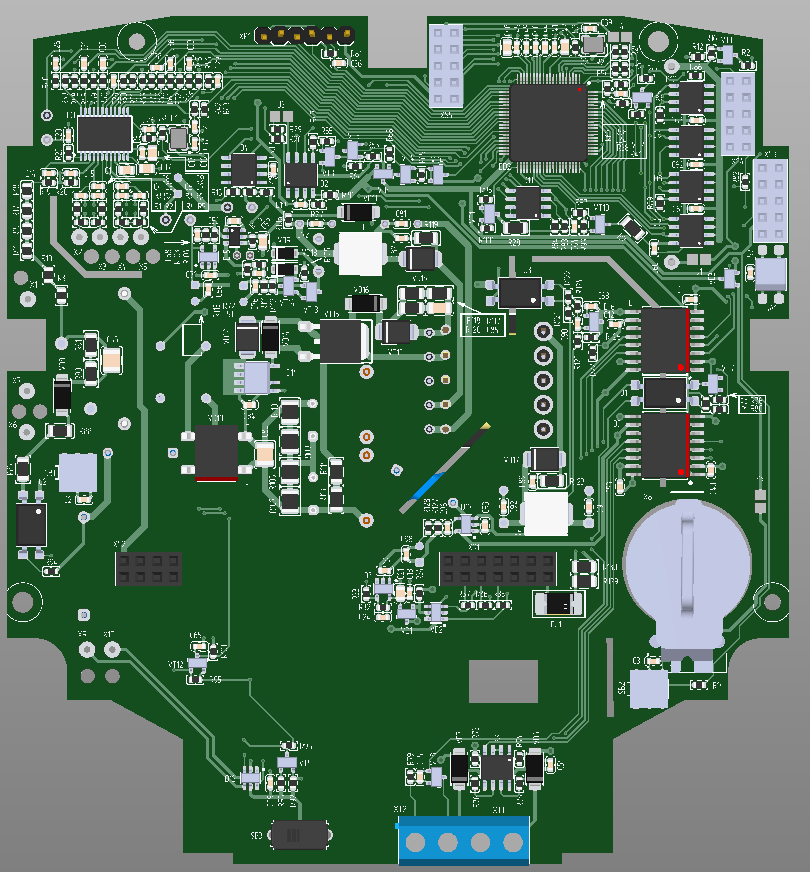

The two-board architecture combines sensitive metering circuitry with 230 V power conversion, memory, communications, RTC and anti-tamper functions. I separated switching-power noise from measurement signals and implemented high-voltage isolation, including an 8 mm creepage barrier, copper-free zones and milled slots.
Production outcome

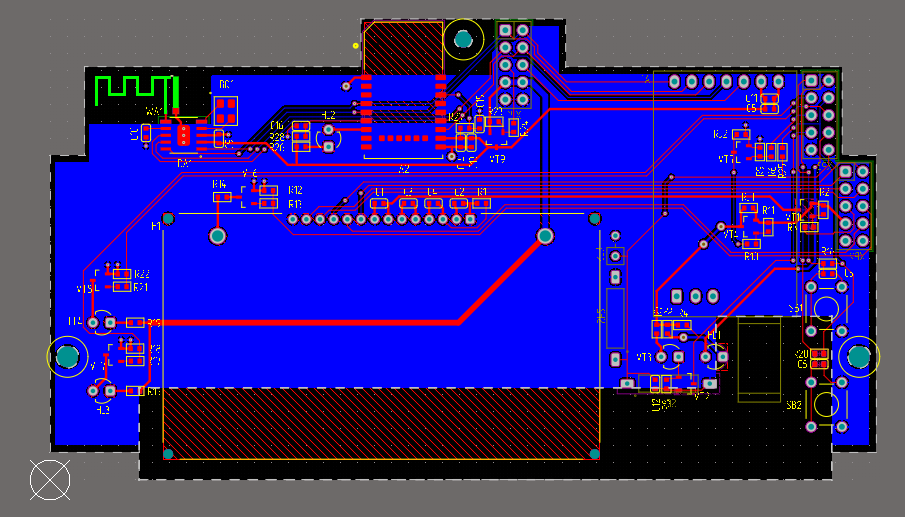

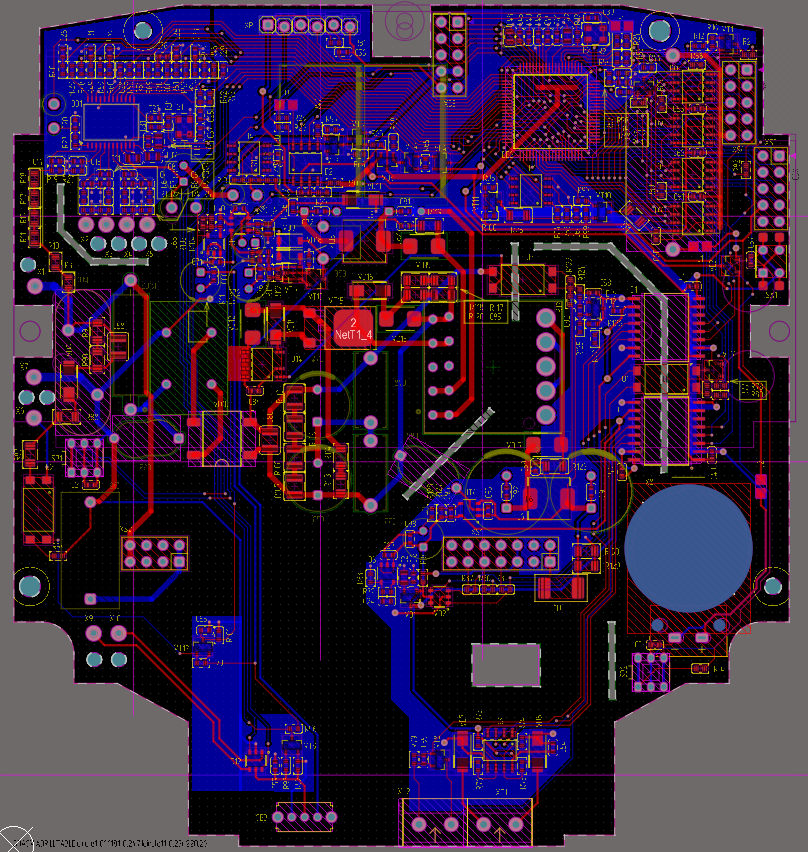

I reworked placement, routing and mechanical integration, then supported prototyping and manufacturing preparation. The redesigned product reached serial production.

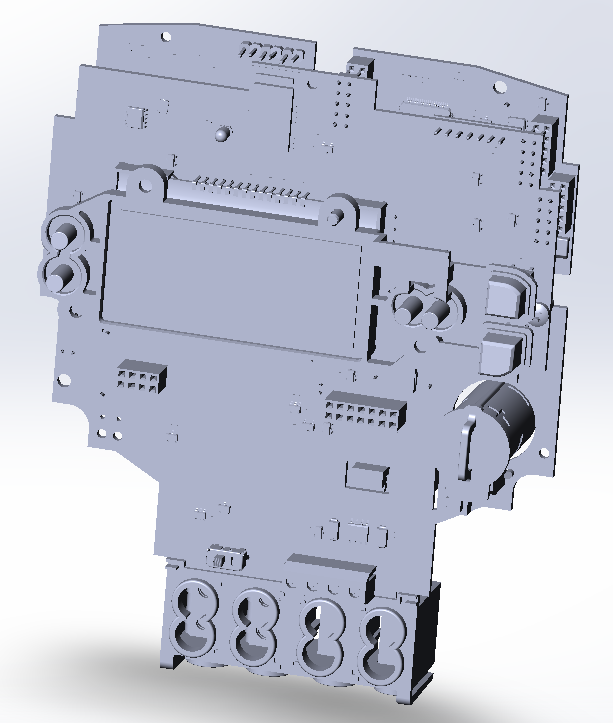

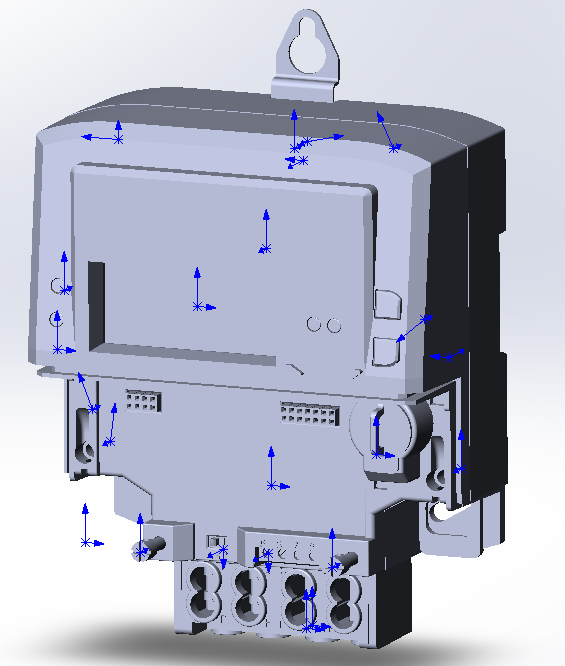

Project views
